Linear guide 45mm - NTRH45 - approx. 4000mm (full length)





Linear guide 45mm - NTRH45 - approx. 4000mm (full length)



€ 539,50 Exclusive of VAT View volume discount
€ 652,80 Inclusive of VAT

  Shipped today

Linear guide 45mm - NTRH45 - approx. 4000mm (full length) kopen
Linear guide 45mm - NTRH45 - approx. 4000mm (full length)
  Shipped today Own warehouse, stock on demand possible. Personal advice
   In cart


Product information
|
Downloads
|
Specifications
|
Combinations
|
Accessories

Product information

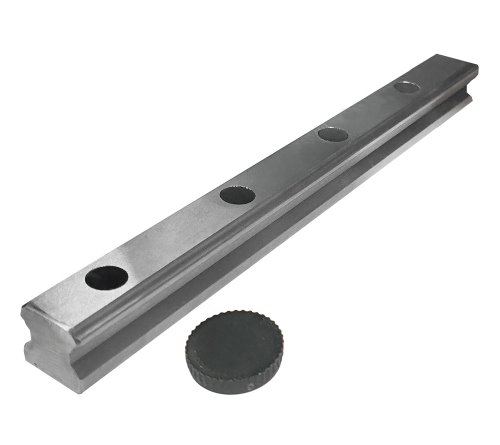

The NTRH45 Newton monorail system from TechniComponents is a high-quality ball screw guide. The NTRH45 system is interchangeable with the THK HSR45 system. The rail is equipped with pot holes for mounting. The guides are supplied including sealing caps for the pot holes. For customized guides, the price is calculated based on the meter price plus cutting allowance per length. There is a separate “Tailored” product for this. The guides do not take into account E1, E2 (distance start conduction to center first hole) as standard.

Downloads


  NTRH45L - monorail (.STEP)
  Datasheet linear system NTRH (.PDF)
Specifications
Article number LGS10088
Type NTRH45
Interchangeable with THK HSR45
Assembly From top
Mounting holes Pot holes
HOH distance mounting holes 105 mm
Mounting hole 14mm (M12)
Material Hardened and treated steel (GCr15 Bearing Steel)
Saw tolerance +/- 1.0mm
Weight (kg/m) 11 kg
