Overview      Linear Guides    Guide carriages

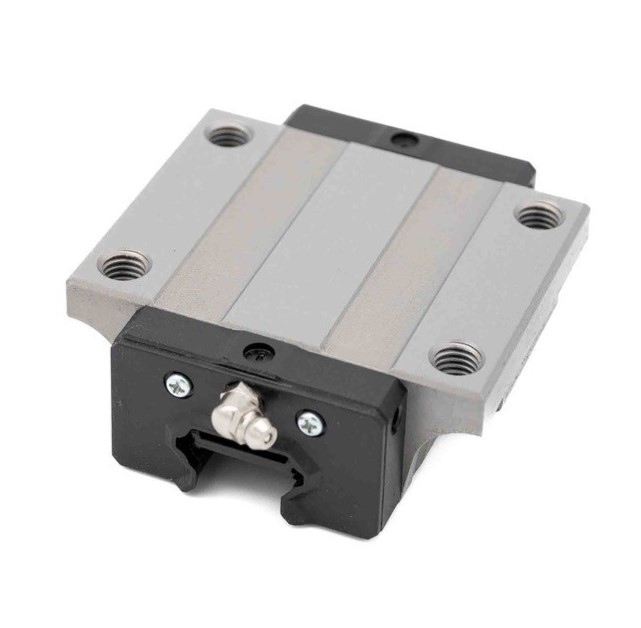

Guide carriage 35mm with Flange - NTRH35A


Article number LGS10086
Guide carriage 35mm with Flange - NTRH35A kopen


€ 72,60 Exclusive of VAT
€ 87,85 Inclusive of VAT
Volume discount
1 - 19 pieces:
€ 72,60
0%
20 - 49 pieces:
€ 70,42
3%
50 pieces:
€ 68,24
6%

  Shipped today
  From € 7,90



   In cart

Product information
|
Downloads
|
Specifications
|
Combinations
|
Accessories
|
Sample

Product information
The NTRH35A Newton monorail system from TechniComponents is a high quality ball screw guide. The NTRH35A system is interchangeable with the THK HSR-A 35 system. The NTRH35A stroller is the flange version of the available trolleys for the NTRH35 system.
Sample aanvragen?

Downloads
  NTRH35A - Block (.STEP)
Specifications
Type
With Flange
Interchangeable with
HIWIN THK HSR-A 35
HOH distance mounting holes (B/C)
82/62 mm
Mounting hole
M10
Material
Hardened and treated steel (GCr15 Bearing Steel) in combination with plastic
Basic load (kN)
61.1
Size M
48 mm
Size W
100 mm
Size L
113.9 mm


Combinations

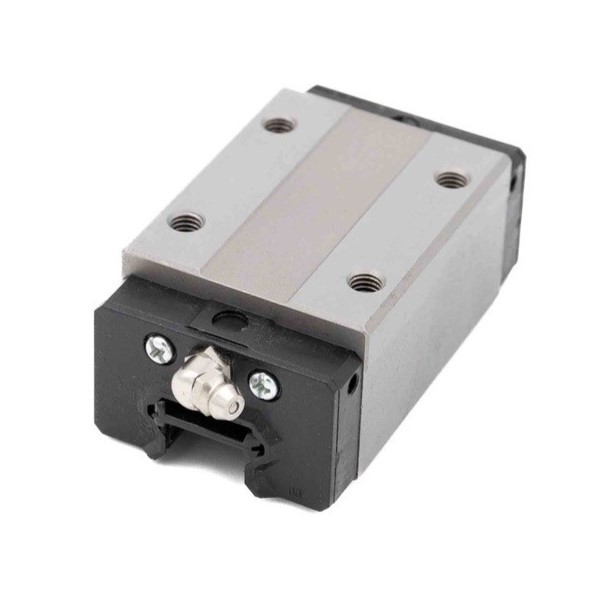

Guide carriage 35mm Compact - NTRH35B
€ 67,65
excl. VAT
View volume discount
  Shipped today

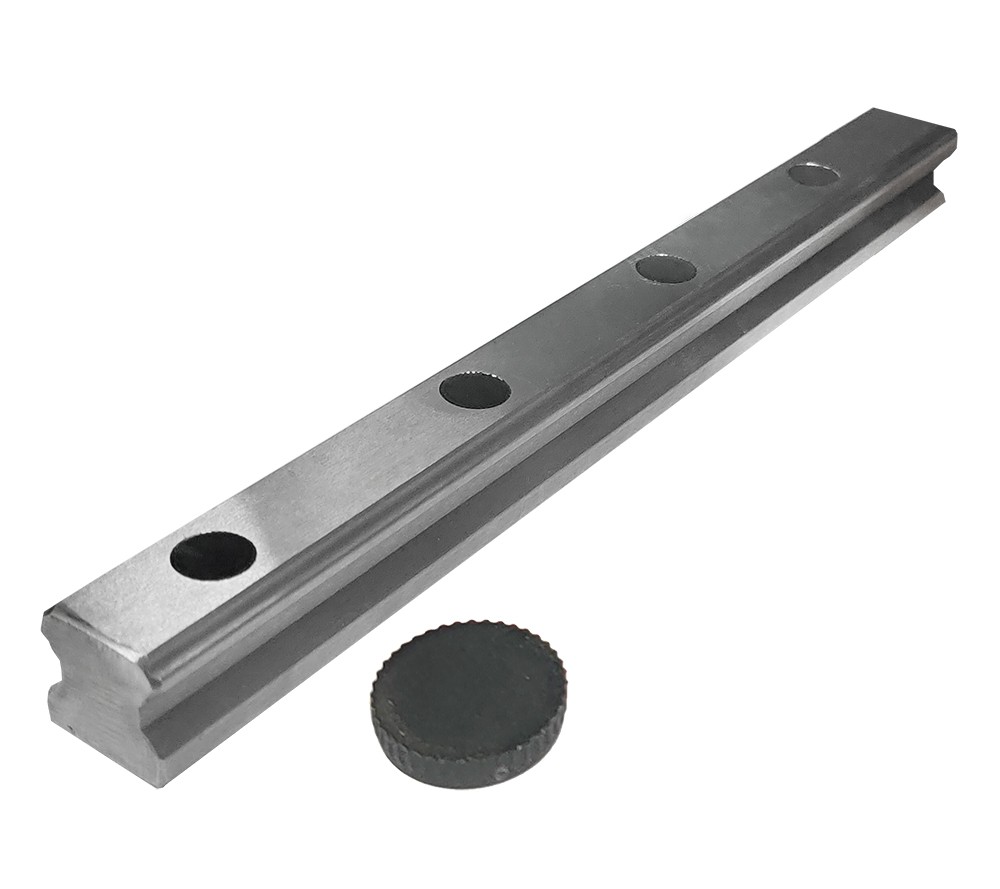

Linear guide 35mm - NTRH35 - approx. 4000mm (full length)
€ 397,00
excl. VAT
View volume discount
  Shipped today

Linear guide 35mm - NTRH35 - 'custom '
€ 109,75
excl. VAT
View volume discount
  Shipped today


Accessories
This product has no accessories (yet).

Sample
Would you like to receive a sample before placing a larger order?
Enter your contact details below and we'll contact you to see if you qualify.
