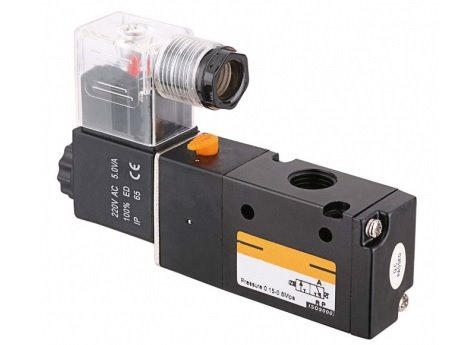

PV3221-24VDC-1/4, 3/2 valve, monostable, G1/4, NC


Article number PN10761
PV3221-24VDC-1/4, 3/2 valve, monostable, G1/4, NC kopen
€ 19,71 Exclusive of VAT
€ 23,85 Inclusive of BTW
Volume discount
1 - 20 pieces:
€ 19,71
0%
20 - 99 pieces:
€ 18,72
5%
100 pieces:
€ 17,74
10%

  Shipped today
  From € 7,90



   In cart

Product information
|
Downloads
|
Specifications
|
Combinations
|
Accessories
|
Sample


Product information
This valve can be applied with and without base plate (valve island). The valve has good flow properties. Under normal circumstances, this valve has a guaranteed lifetime of 12,000,000 cycles. The working medium: Air, must be at least 25 um filtered. Lubricated or unlubricated. Once started lubrication must be continued. For detailed specifications and dimensions see datasheet.

Downloads

Specifications
Original status
NC
Thread Type
Internal thread
Port connection
G1/4
Working pressure (bar)
1.5-8
Max. pressure (bar)
12
Controls
Electric
Function
3/2, monostable
Operating voltage
24VDC
Voltage tolerance
± 10%
Switching time (at 5 bar)
<50 ms, max. 5 circuits/sec
Protection class
IP65
Operating temperature (°C)
-5 to +60
Body material
Die-cast aluminum
Sealing material
NBR
Medium
Compressed air
