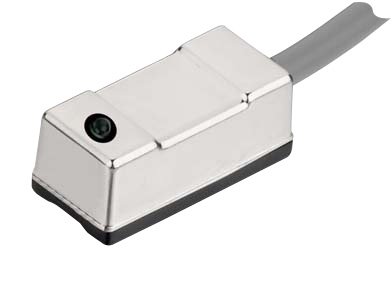

PVMS-21R, Reed Switch, 5m cable

PVMS-21R, Reed Switch, 5m cable



€ 9,75 Exclusive of VAT View volume discount
€ 11,80 Inclusive of VAT

  In stock

PVMS-21R, Reed Switch, 5m cable kopen
PVMS-21R, Reed Switch, 5m cable
  In stock Own warehouse, stock on demand possible. Personal advice
   In cart


Product information
|
Downloads
|
Specifications
|
Combinations
|
Accessories

Product information


Position detector (Reed contact) for pneumatic cylinders. This position detector is suitable for different types of cylinders. See specifications. You can find any associated mounting brackets with accessories.

Downloads


  Sensor PVMS-21 (.STEP)
Specifications
Article number PN10628
Function Reed switch
Sensor type With contact
Connection 2-core cable
Switching frequency (Hz) 200
Detection point 13 mm from the end side
LED indication Red
Cable length 5m +/- 20 mm
Shock resistance 30 G
Protection class IP67
Dimensions LxWxH (mm) 29x12.5x11.1 mm
Cable PVC cable black (Oil resistant)
Suitable for cylinder type PVTBC; PVXBC; PVVBC; PVLBC
Suitable for SMC/Festo cylinder type C95; DNU/DNGU
Minimum operating temperature (°C) -10
Maximum operating temperature (°C) +70

Alle maten en soorten


Number
Description
Stock
Unit price
Quantity
PN10628
PVMS-21R, Reed Switch, 5m cable
Function: Reed switch
Connection: 2 core cable Stock:
  In stock
  In stock
€ 9,75
€ 9,75

PN10629
PVMS-21RM8, Reed Switch, M8 connector, 15cm cable
Function: Reed switch
Connection: M8 connector 3 pin out, straight execution Stock:   In stock
  In stock
€ 10,37
€ 10,37

PN10630
PVMS-21RM8, Reed Switch, M8 connector, 5M cable
Function: Reed switch
Connection: M8 connector 3 pin out, straight execution Stock:   In stock
  In stock
€ 10,52
€ 10,52

PN10631
PVMS-31R, T-slot, Reed Switch, 5m cable
Voltage: 5 240V AC/DC
Function: Reed switch
Connection: 3 core cable Stock:   In stock
  In stock
€ 13,54
€ 13,54

PN10632
PVMS-31RM8, T-slot, Reed Switch, M8 connector, 15cm cable
Function: Reed switch
Connection: M8 connector 3 pin out, straight execution Stock:   In stock
  In stock
€ 13,15
€ 13,15
