Valve terminal G1/8, 24VDC, 6 stations, Multi-pin, S1R

Valve terminal G1/8", 24VDC, 6 stations, Multi-pin, S1R



€ 235,74 Exclusive of VAT View volume discount
€ 285,25 Inclusive of VAT

  In stock


Valve terminal G1/8, 24VDC, 6 stations, Multi-pin, S1R kopen
Valve terminal G1/8", 24VDC, 6 stations, Multi-pin, S1R
  In stock
Own warehouse, stock on demand possible. Personal advice


Product information
|
Downloads
|
Specifications
|
Combinations
|
Accessories

Product information

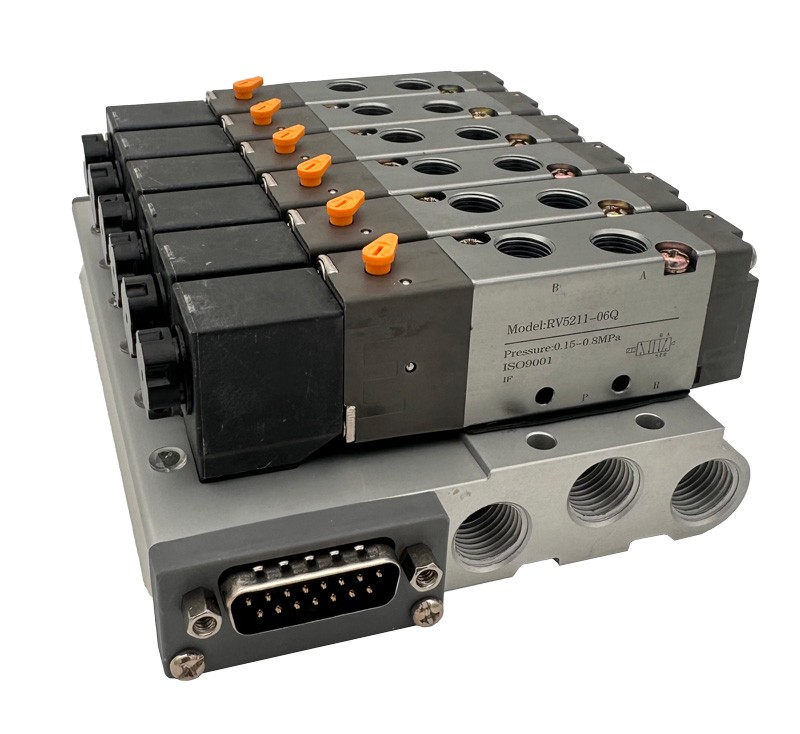

Valve terminal with 6 stations, G1/8", 24VDC, Multi-pin connection.

Downloads


  PN20414 (.STEP)
Specifications
Article number PN20414
Article code S1R-1/8-6
Port connection G1/8
Working pressure (bar) 1.5-8
Max. pressure (bar) 12
Operating voltage 24VDC
Voltage tolerance ±10%
Switching time (at 5 bar) <50 ms, max. 5 circuits/sec
Protection class IP40
Operating temperature (°C) -5 tot +60
Body material Aluminium
Sealing material NBR
Number of stations 6
Consumption 2,8W / station
Flow per station (L/min) 500 l/min

All types and sizes


Number
Description
Stock
Unit price
Quantity
Valve terminal G1/8", 24VDC, 4 stations, Multi-pin, S1R
Consumption: 2,8W / station
Port connection: G1/8
Operating voltage: 24VDC
Stock:
  In stock
  In stock
€ 167,55
€ 167,55

Valve terminal G1/8", 24VDC, 5 stations, Multi-pin, S1R
Consumption: 2,8W / station
Port connection: G1/8
Operating voltage: 24VDC
Stock:
  In stock
  In stock
€ 201,42
€ 201,42

Valve terminal G1/8", 24VDC, 6 stations, Multi-pin, S1R
Consumption: 2,8W / station
Port connection: G1/8
Operating voltage: 24VDC
Stock:
  In stock
  In stock
€ 235,74
€ 235,74

Valve terminal G1/8", 24VDC, 7 stations, Multi-pin, S1R
Consumption: 2,8W / station
Port connection: G1/8
Operating voltage: 24VDC
Stock:
  In stock
  In stock
€ 269,40
€ 269,40

Valve terminal G1/8", 24VDC, 8 stations, Multi-pin, S1R
Consumption: 2,8W / station
Port connection: G1/8
Operating voltage: 24VDC
Stock:
  In stock
  In stock
€ 302,85
€ 302,85
